Pull-Thru Design: SILICONE RUBBER KEYPADS AND CONDUCTIVE RUBBER KEYPADS

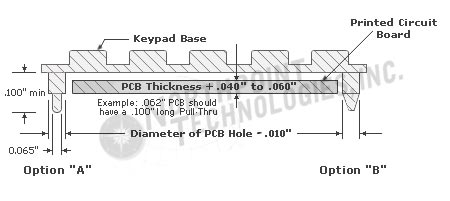

Suggestions for PCB Pull-Thru Tail Design
The diameter of the PCB hole is approximately .010″ smaller than the diameter of the Pull-Thru.
Recommended PCB hole diameter: .090″ to .100″.
The location of the Pull-thru tails can be on any flat surface of the base.
