Touch Screen - Standard & Stock Sizes

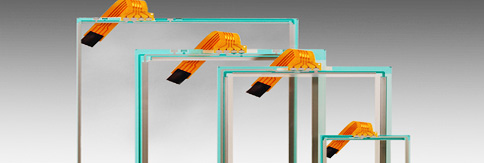

Stock sizes provide the fastest and most economical solution to your touch screen needs by avoiding the necessity of customized tooling. Northpoint Technologies offers affordable touch screens with many options in the widest range of standard sizes available. Some of the more popular sizes listed are in stock for immediate shipment.

standard1

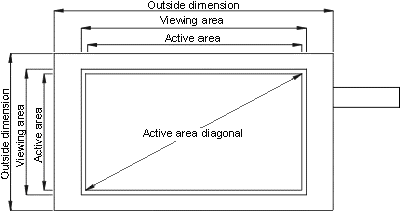

To view a technical drawing, click in the appropriate row under the View Technical Drawing heading. For ordering information, please Contact Us.
untitled-2touch

4-Wire Touch Screen Stock S

Model No.

Size
(in)

Outside Dimension
(mm)

Viewing Area
(mm)

Active Area
(mm)

Technical
Drawing

TP4-025F-04

2.5

63.5×41.5

56.0×34.0

54.4×32.4

View Drawing

TP4-030F-13

3.0

70.0×55.0

61.5×47.6

58.5×44.5

View Drawing

TP4-039F-11

3.9

69.5×89.5

61.0×80.9

60.0×79.9

View Drawing

TP4-040F-09

4.0

90.0×70.0

81.4×61.0

78.0×59.0

View Drawing

TP4-052F-04

5.2

125.0×74.0

115.0×65.0

110.0×60.0

View Drawing

TP4-058F-09

5.8

137.5×107.0

122.6×93.8

116.2×87.3

View Drawing

TP4-064F-04

6.4

155.0×118.7

135.6×102.6

132.0×99.0

View Drawing

TP4-070F-07

7.0

169.5×106.0

158.0×950

154.0×92.0

View Drawing

TP4-075F-03

7.5

180.9×143.0

162.9×124.4

155.9×117.4

View Drawing

TP4-084F-09

8.4

183.4×139.6

173.8×131.2

172.4×129.8

View Drawing

TP4-094F-09

9.4

225.5×170.5

201.7×154.0

193.7×146.0

View Drawing

TP4-104F-27

10.4

227.4×174.0

214.5×162.0

212.0×159.2

View Drawing

TP4-121F-21

12.1

268.5×201.5

253.5×189.0

245.0×183.0

View Drawing

TP4-141F-14

14.1

302.0×234.0

288.7×217.7

284.7×213.7

View Drawing

TP4-150F-05

15.0

330.0×255.5

311.0×235.0

303.0×227.0

View Drawing

TP4-170F-02

17.0

366.0×289.0

346.0×276.0

338.0×268.0

View Drawing

TP4-181F-02

18.1

388.1×308.6

366.0×293.2

359.0×287.2

View Drawing



5-Wire Touch Screen Stock S

Model No.

Size
(in)

Outside Dimension
(mm)

Viewing Area
(mm)

Active Area
(mm)

Technical
Drawing

TP5-064F-09N

6.4

150.0×115.5

133.6×101.4

130.6×98.4

View Drawing

TP5-104F-36N

10.4

248.8×186.7

219.9×167.8

215.9×163.8

View Drawing

TP5-121F-26N

12.1

271.3×205.7

252.9×191.4

248.9×187.4.0

View Drawing

TP5-150F-12N

15.0

332.9×248.9

311.1×235.1

307.1×231.1

View Drawing

TP5-151F-12N

15.1

356.0×264.4

320.0×242.0

310.0×232.0

View Drawing



Capacitive Touch Screen Stock Sizes

Model No.

Size
(in)

Outside Dimension
(mm)

Viewing Area
(mm)

Active Area
(mm)

Technical
Drawing

CA5-121F-009

12.1

272.3×205.7

251.7×190.2

248.9×187.4

View Drawing

CA5-151F-015

15.0

330.0×254.0

310.0×236.0

307.0×232.0

View Drawing

CA5-171F-003

17.1

365.4×340.0

343.0×275.4

290.2×272.4

View Drawing
