Non-Tactile Membrane Switch

Non-Tactile Membrane Switch
Polyester circuit layers printed with silver ink
Layers are sandwich around insulating spacer
Layers are die-cut at specific contact points
Layer are sealed permanently
Graphic Overlay with customer’s Logo/design
Non-Tactile Membrane Switch2
Switch is virtually impervious to harsh environment
Typically our switch will not exceed 0.03 thickness
An EMI/ESD shielding panel can be added
Non-Tactile Membrane Switch3
Switch still remains thin and flexible with panel
Switches are mechanically self-supporting
Switches are easy to install in the field
Switches can easily be changed for an upgrade

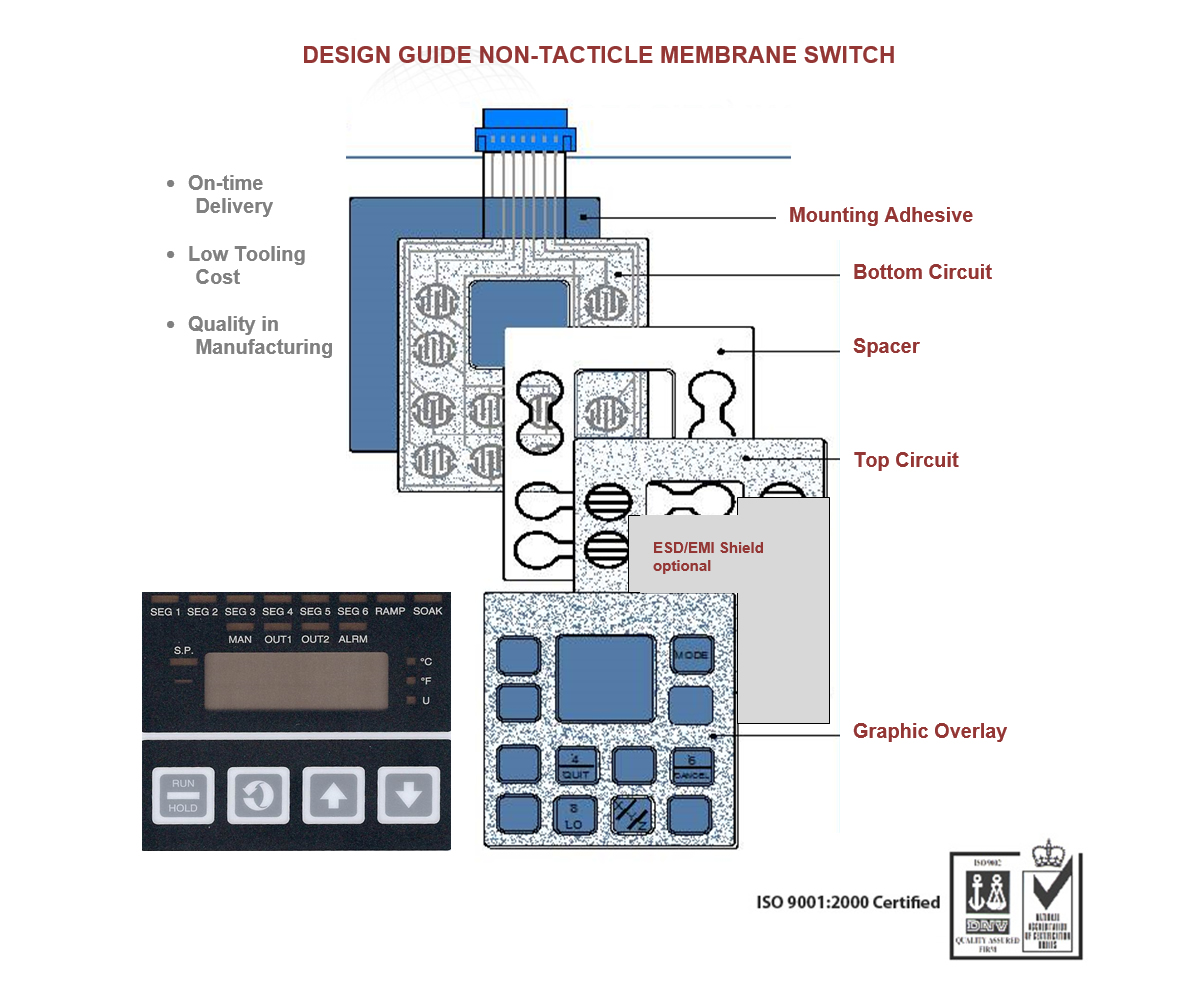

Design-Guide-Non-Tactile Membrane Switch



Tactile Membrane Switch

Tactile Membrane Switch1
Polyester circuit layers printed with silver ink
Layers are sandwich around insulating spacer
Layers are die-cut at specific contact points
Layer are sealed permanently
Dome-shaped disks of polyester, or stainless steel
Graphic Overlay with customer’s Logo/design

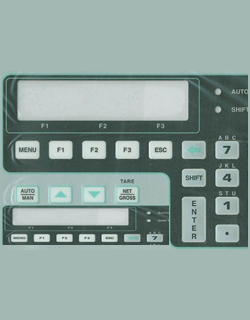

Tactile Membrane Switch2
Polyester dome will operate flawlessly for as many as 1,000,000 operations under all but the most severe temperature conditions

Stainless steel dome will operate for as many as 3,000,000 operations under the same conditions

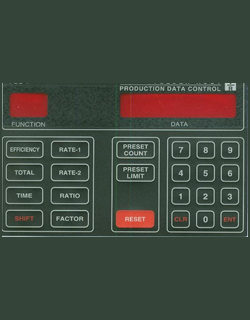

Tactile Membrane Switch3
Switches are mechanically self-supporting
Switches are easy to install in the field
Switches can easily be changed for an upgrade

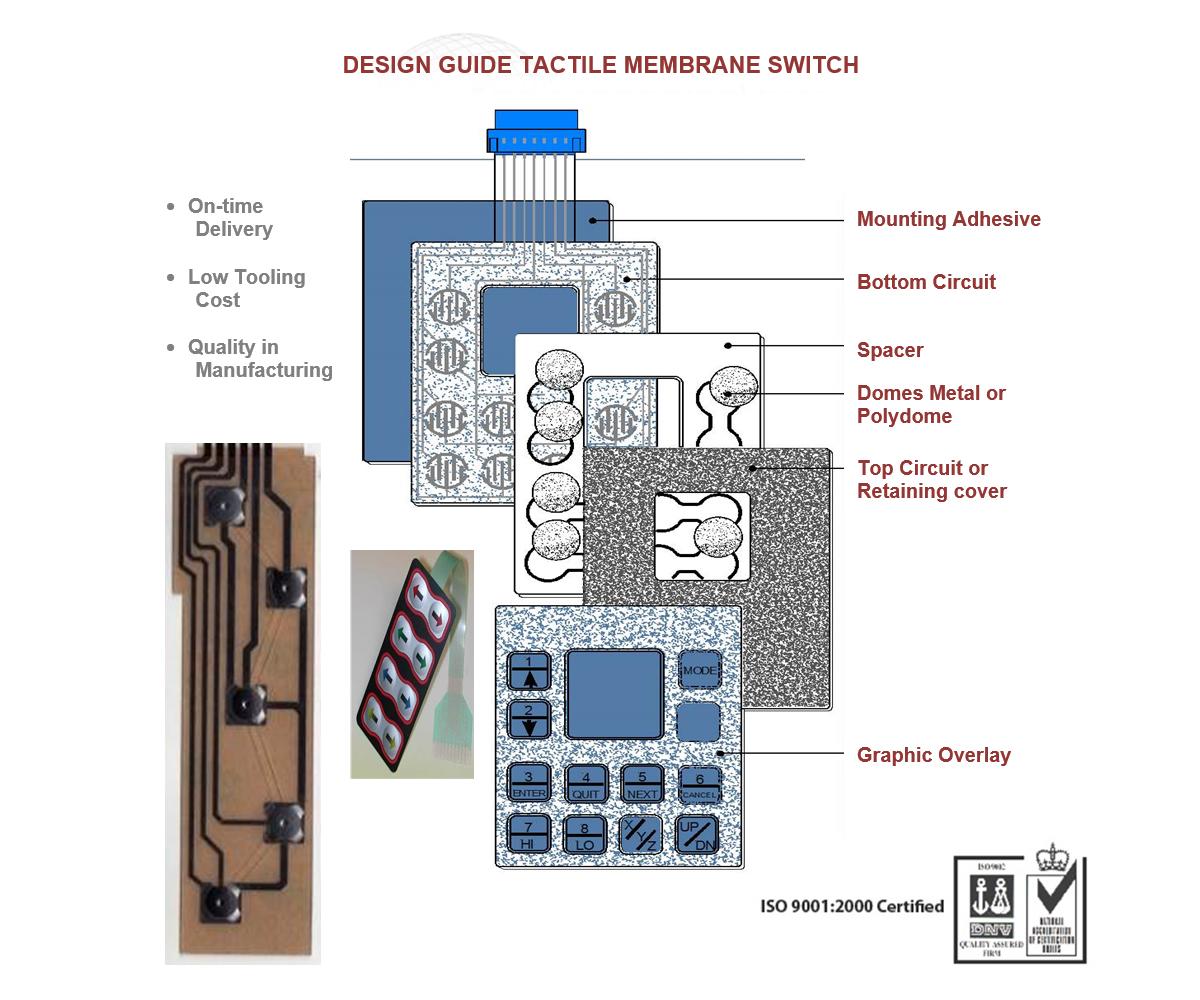

Design-Guide-Tactile Membrane Switch

Membrane Switches Design Options

Materials: Polycarbonate (Lexan)
Polyester
Vinyl,
Acrylic are among the most widely-used materials
Surface Texturing: Standard surface textures include velvet, suede, matte, and gloss
Ultraviolet (UV) processed
Lens Filtering: Standard red, green and gray for use with LEDs or fluorescent displays
Graphic or window are deadfronted to keep invisible until backlit.
Embossing: Full Pad (pillow)
Rim embossing
Create a 3-dimensional appearance
Shielding: EMI
RFI
ESD
Terminating: Can be supplied unterminated
With Terminal Pads
Slide-in Pressure Connectors
DuPont/Berg Clincher Connectors

Membrane Switch Specifications

Electrical Specifications Non-Tactile Metal-Dome Tactile Embossed Polyester Tactile
Voltage 30VAC/DC 30VAC/DC 30VAC/DC
Current 100mA (Max) 100mA (Max) 100mA (Max)
Power 1 Watt (Max) 1 Watt (Max) 1 Watt (Max)
Resistance < 100 Ohms < 100 Ohms < 100 Ohms
Capacitance < 20pF < 20pF < 20pF
Contact Bounce 10 ms (Typ.) 10 ms (Typ.) 10 ms (Typ.)
MECHANICAL SPECIFICATIONS
Key Travel .007 – .010 in .015 – .025 in .010 – .030 in
Operating Force 3 – 8 oz. 5 – 18 oz. 5 – 18 oz.
Life Expectancy 5,000,000 cycles 3,000,000 cycles 1,000,000 cycles
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature -30° to + 75° C -30° to + 65° C -20° to + 55° C
Storage Temperature -40° to + 80° C -40° to + 65° C -40° to + 80° C
